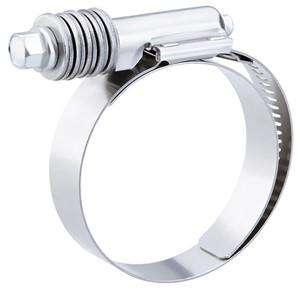

Breeze Constant-Torque CT 9416 13/16 - 1 1/2 Inch Range, 9/16" 304 SS Band | 10 PACK

Breeze Constant-Torque CT 9416 13/16 - 1 1/2 Inch Range, 9/16" 304 SS Band

• QTY 10 - Box
• Band Material: 304 SS
• Screw Material: 410 SS
• SAE: 16
• Band Width: 9/16"
• Min. Inches: 13/16
• Max. Inches: 1 1/2
• Min. mm: 21
• Max. mm: 38
• Torque Range: 70 in/lbs
• Hex Screw: 5/16" Hex Cap
• Liner protects soft or silicone hose from damage, extrusion, or shear
• Fleet standard - easily installed, easily replaced in the field
• Made in the USA
• Breeze Constant-Torque® Flyer

Virtually all rubber hose compresses "cold flow" after installation of a clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm-gear, T-Bolt, and other clamps are passive, in that expansion and contraction of components cannot be compensated for without retightening or loosening the clamps. This Breeze clamping system is an "active" clamp mechanism, which monitors and then compensates for the temperature changes by actually changing diameter through a unique worm-gear Belleville assembly.
