Sure-Lok | Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster| FE200710HA
Sure-Lok | Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster| FE200710HA
Couldn't load pickup availability

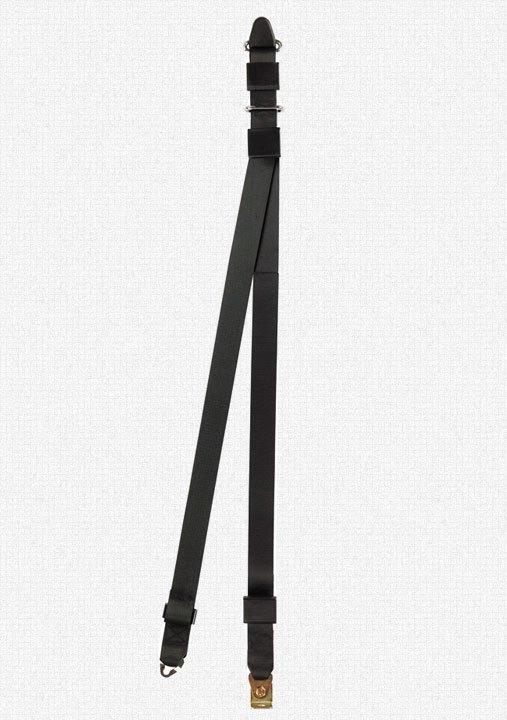

Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster
Sure-Lok FE200710HA Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster (72″ length) features nearly 12″ vertical adjustment for optimal shoulder positioning across diverse passenger heights with versatile sidewall/L-Track mounting.
Includes: Qty 1 Non-Retractable Fixed-Point Shoulder Belt with Height Adjuster| FE200710HA
Key Specifications:
| Feature | Specification |
|---|---|
| Length | 72″ (183 cm) |
| Height Adjustment | Nearly 12″ vertical |
| Web Guide Mount | Sidewall/L-Track (FE200745/747/736) |
| Bottom Bracket | Floor/Sidewall/Track (FE200747/201037/39) |
| Stowage | Velcro sidewall strap |
Mounting Options:
| Component | Hardware Kits |
|---|---|
| Web Guide (Upper) | FE200745, FE200747, FE200736 |
| Bottom Bracket (Lower) | FE200747, FE201037, FE201039 |
KEY FEATURES:
- 12″ Height Range: Fits passengers 4'6″-6'6″ without multiple belt sizes.
- Dual Mounting: Web guide + bottom bracket independent positioning.
- Track Convertible: Fixed → adjustable L-Track positioning.
- Velcro Organization: Clean stowage prevents trip hazards.
- Non-Retractable: Fixed tension maintains belt geometry.
This fixed-length shoulder belt includes web guide (mounts to sidewall or Series L-Track via FE200745/FE200747/FE200736 kits) and bottom bracket (floor/sidewall or track convertible via FE200747/FE201037/FE201039 kits). Velcro strap stows belt neatly; essential for complete Sure-Lok WC19 occupant systems paired with lap belts.
Standards Compliance:
| Standard | Test Criteria |
|---|---|
| SAE J2249 | 30mph/20g impact |
| CSA Z605 | 30mph/20g Canadian |
| FMVSS 222 | School bus protection |
| ADA 49 CFR Part 38 | Accessibility |
| FMVSS 209/210/302 | Seat belts/flammability |
WARNING: Requires lap belt pairing. Not wheelchair securement.
Comparison: Retractable vs Non-Retractable:
| Feature | FE200604HA (Retractable) | FE200710HA (Non-Retractable) |
|---|---|---|
| Length | 136″ | 72″ |
| Tensioning | Automatic | Fixed |
| Adjustment | Web-sensitive | 12″ height adjuster |
| Stowage | Auto-retracts | Velcro strap |
Required Components:
| Component | SKU/Link | Purpose |
|---|---|---|
| Lap Belt | FE200637-14 | Lower torso |
| Retractable Alt | FE200604HA | Auto-tensioning |
| Quick Disconnect | FE200865 | Flip seat use |
