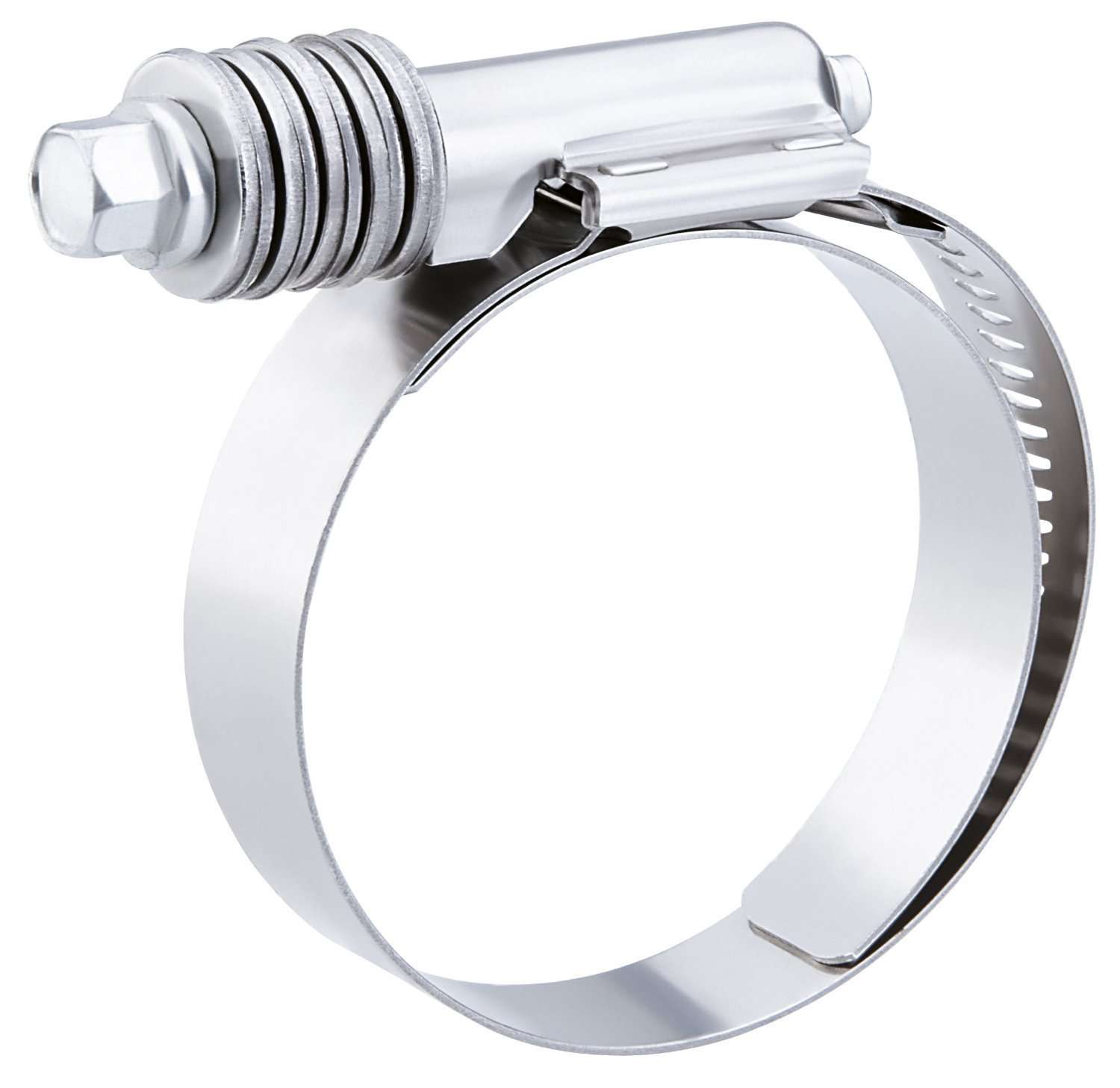

Breeze Constant-Torque Stainless Steel Hose Clamp 3 3/4" to 4 5/8" CT450LSS | 5 PACK

Qty 5 Breeze Constant-Torque Stainless Steel Hose Clamp Size 462, 3 3/4" to 4 5/8" Diameter Range, 5/8" Band Width

• QTY 5
• 3 3/4" to 4 5/8" (95mm - 118mm) Diameter Range
• 5/8" Bandwidth
• Used in applications that require thermal expansion and contraction
• Heavy duty construction, stops fluid leaks
• Liners are integral extensions of the band that lie true to the clamping axis
• Monitors and then compensates for the temperature variations by changing diameter through a unique worm-gear Belleville assembly
• Energy stored in five compressed Belleville springs controls automatic clamp adjustment
• Per SAE standard J1508 type "SLHD"
• Four piece, Quadra-lock construction: housing orbitally riveted to saddle at 4 points providing extra strength
• 301 Stainless Steel Belleville springs (five)
• 304 Stainless Steel band and housing
• 410 Stainless Steel hex cap screw
• Breeze Constant-Torque® Flyer

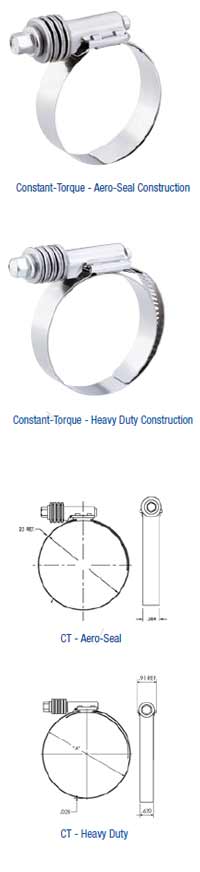

The Breeze CONSTANT-TORQUE® is a breakthrough in clamping technology. A belleville spring mechanism permits the CONSTANT-TORQUE® clamp to automatically increase or decrease its own diameter due to changes in operational or environmental temperatures.

This unique design eliminates “cold flow” leaks. Both the Aero-Seal and Heavy Duty construction CT clamps have an extended inner liner which protects all types of hoses from damage and helps to maintain consistent sealing pressure.
