Retractable Lap/Shoulder Belt Combo Fixed Mounting Hardware Assembly | Q5-3211-1A

Q5-3211-1A | Retractable Lap/Shoulder Belt Combo Fixed Mounting Hardware Assembly

The Q5-3211-1A combines advanced restraint technology with practical installation features. This professional-grade retractable lap/shoulder belt assembly incorporates fixed mounting hardware for permanent, secure attachment. Engineered to provide consistent tensioning and reliable occupant protection, the integrated design eliminates the need for separate components. Meets rigorous safety standards while delivering the performance demanded in specialized vehicle applications and industrial settings.

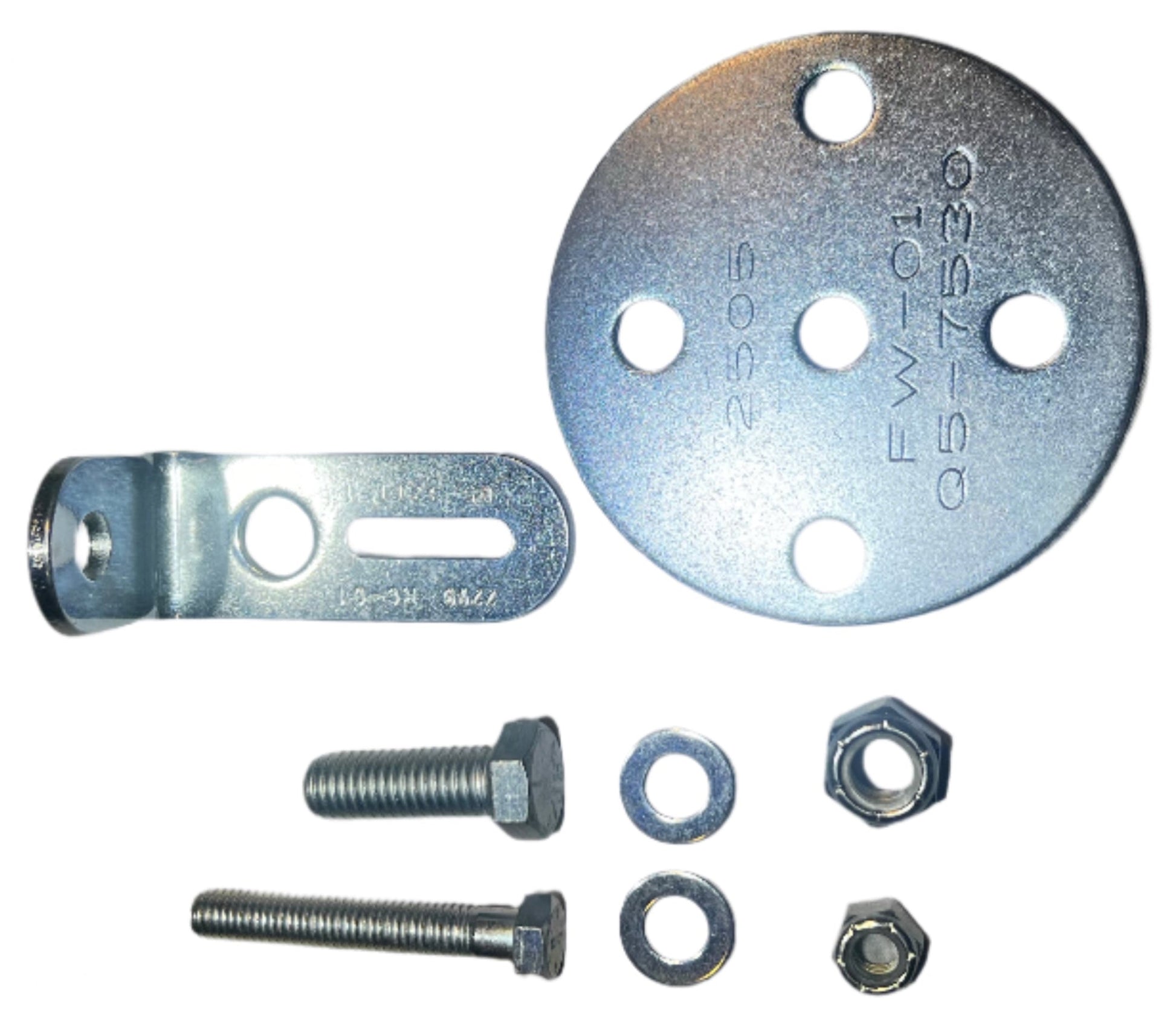

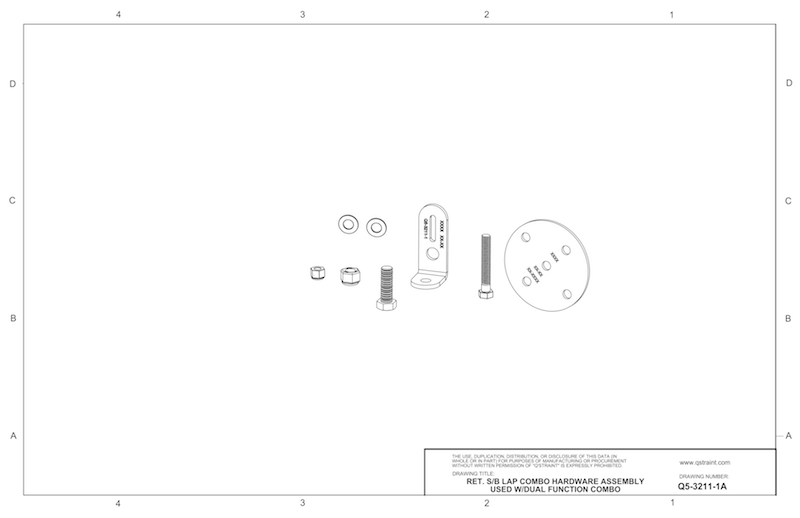

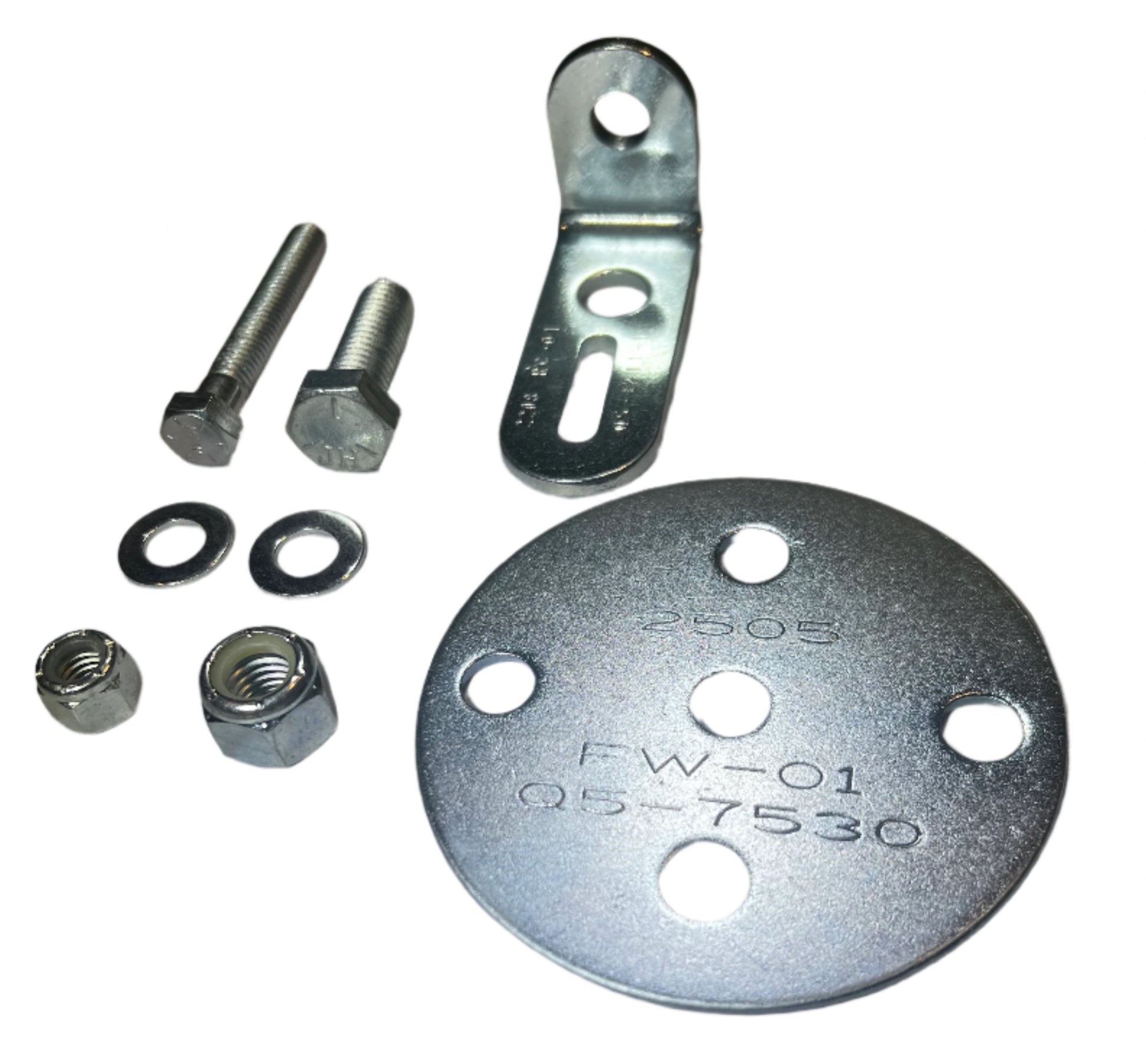

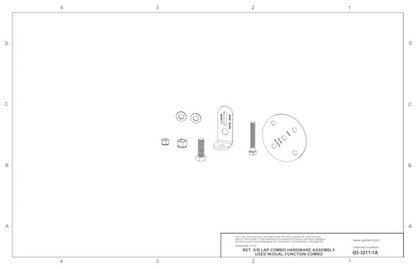

Includes:  (1) Q5-3211-1A mounting hardware for combo retractable lap/shoulder belt

• (2) Mounting Bolts

  • 1/2-13 X 1 1/2 GR 5 | Q8-6560
  • 3/8 -16 X 2 1/2 Hex: ZD/GRD 8
• (2) Flat Washer | Q5-6511

• (1) L Bracket - 90 Degree Bracket | Q5-3211-1

• (2) Locknut
  • 1/2 - 13 Nylon Insert | Q8-6561
  • 3/8 - 16 Locknut GRD8 | Q5-6512-D

• (1) Mounting Disc - WASHER 4” IN DIA X 10 GA | Q5-6509-D


Installation Instructions

SKU: Q5-3211-1A
