FF600 Series Wheelchair Retractor Kit S Hooks & Occupant Restraint with 45° Mounting

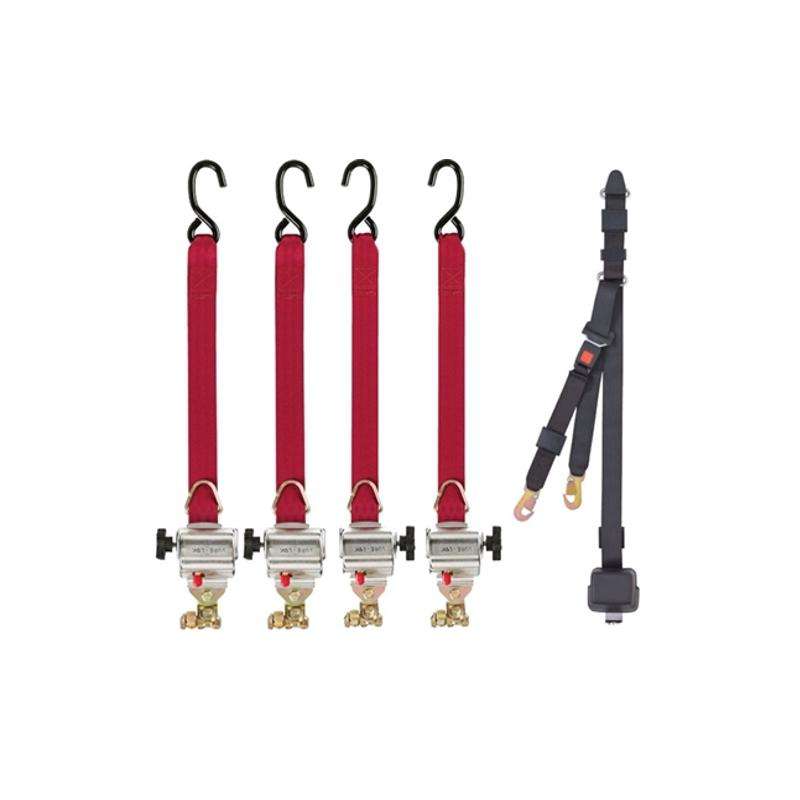

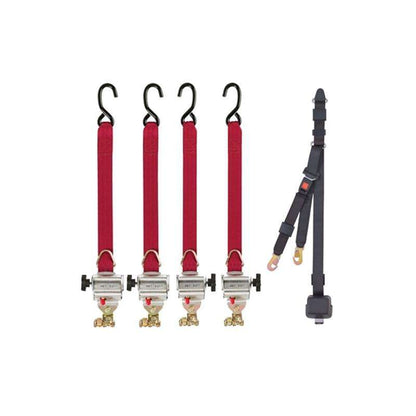

A proven, convenient system to secure wheelchair passengers. The FF600 Retractor Series System, which includes the FF612-4C, is the most convenient and proven wheelchair securement system you can buy today. The FF612S-4C-7 wheelchair securement kit includes 4 retractors for series L-track.
The ergonomically designed handle is quick and easy to grasp, the dual, 24-teeth sprocket mechanism enables the user to more easily increase tension on the webbing and the track fittings are specifically designed to ensure free pivoting action for optimum belt alignment.

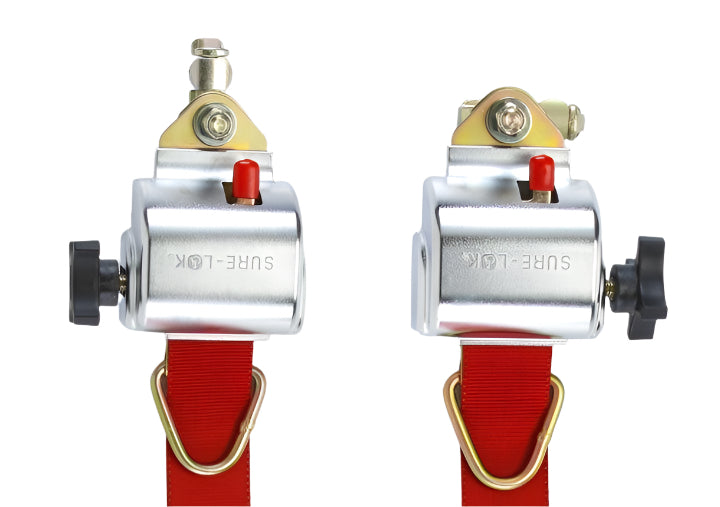

Qty 2 Right-Hand Crank Retractor Assembly with D-Ring and S-Hook | (FE200855S)
Qty 2 Left-Hand Crank Retractor Assembly with D-Ring and S-Hook | FE200907S
Qty 1 Dual Retractable Integrated Combination Belt with 45-degree Mounting Bracket | FE200868-4
FF600 retractors, when properly used with acomplete Sure-Lok System(comprised of wheelchair tie-down, a complete occupant restraint system, including lap and shoulder belt), track and anchorages are designed to meet the following requirements where applicable:
30mph/20g Impact Test Criteria per SAE J2249
30mph/20g Impact Test Criteria per Canadian Z605 Standard
30mph/20g Impact Test Criteria per National Standards for School Buses
49 CFR Part 38 Americans with Disabilities Act (ADA)
49 CFR Part 571.222 (FMVSS 222) School Bus Passenger Seating and Crash Protection
