High Quality Integrated Combination Belt with Height Adjuster | AL700856HA

High Quality Occupant by Ratchetstrap.com

  • $ 000

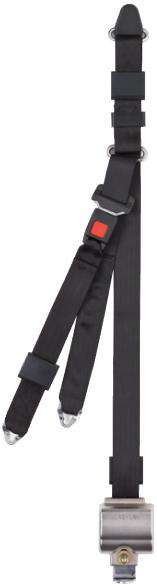

Integrated Combination Belt with Height Adjuster

Integrated Combination Belt with Height Adjuster Integrated Combination Belt with triangular fittings to attach lap belt to stud on rear wheelchair tie-down retractor assemblies. Height Adjuster provides nearly 12” of vertical adjustment to allow proper shoulder belt placement on the occupant. A Velcro strap is provided to keep belt against the vehicle sidewall when not in use.

The AL700856HA is designed to allow the retractor to be installed on a sidewall rail, which is typically mounted 10” above the vehicle floor.

For use with AL700 Titan Series Systems only.

For use with AL700 Titan Series Systems only.Shoulder Restraint Application / Sizing

Sure-Lok Occupant Restraint Systems

The Integrated Combination Belt provides a shoulder belt and integrated lap belt that are incorporated into a fully retractable unit. It combines the automatic adjustability of a shoulder belt with the easy installation of an integrated lap belt. The web guide can be mounted directly to vehicle sidewall or Series L Track with FE200745, FE200747 or FE200736 Mounting Hardware Kit. Retractor can be mounted to vehicle floor or sidewall, or can be converted from fixed-point to track application with FE200747, FE201037 or FE201039 Mounting Hardware Kit.

SKU: AL700856HA

Sure-Lok Occupant Restraint Systems provide a wide range of options, allowing you to select the products that are best suited for the needs of each user and the layout of each vehicle.

The 3 styles of Occupant Restraints:

Lap Belts, Shoulder Belts, or Integrated Combination Belts.

Occupant Restraints, when properly used with a complete Sure-Lok System (comprised of wheelchair tie-down, a complete occupant restraint system, including lap and shoulder belt), track and anchorages are designed to meet the following requirements where applicable:

  • 30mph/20g Impact Test Criteria per SAE J2249
  • 30mph/20g Impact Test Criteria per Canadian Z605 Standard
  • 30mph/20g Impact Test Criteria per National Standards for School Buses
  • 49 CFR Part 38 Americans with Disabilities Act (ADA)
  • 49 CFR Part 571.222 (FMVSS 222) School Bus Passenger Seating and Crash Protection
  • FMVSS 302 Flammability Test
  • Certificates of Conformance available upon request
WARNING:

Occupant Restraints are not wheelchair securements. Always secure the occupant in the vehicle with a complete Sure-Lok Occupant Restraint System, consisting of lap and shoulder belts

The Integrated Combination Belt with Height Adjuster | AL700856HA is evocative, to say the least, but that's why you're drawn to it in the first place.

Inventory Last Updated: Dec 04, 2020
