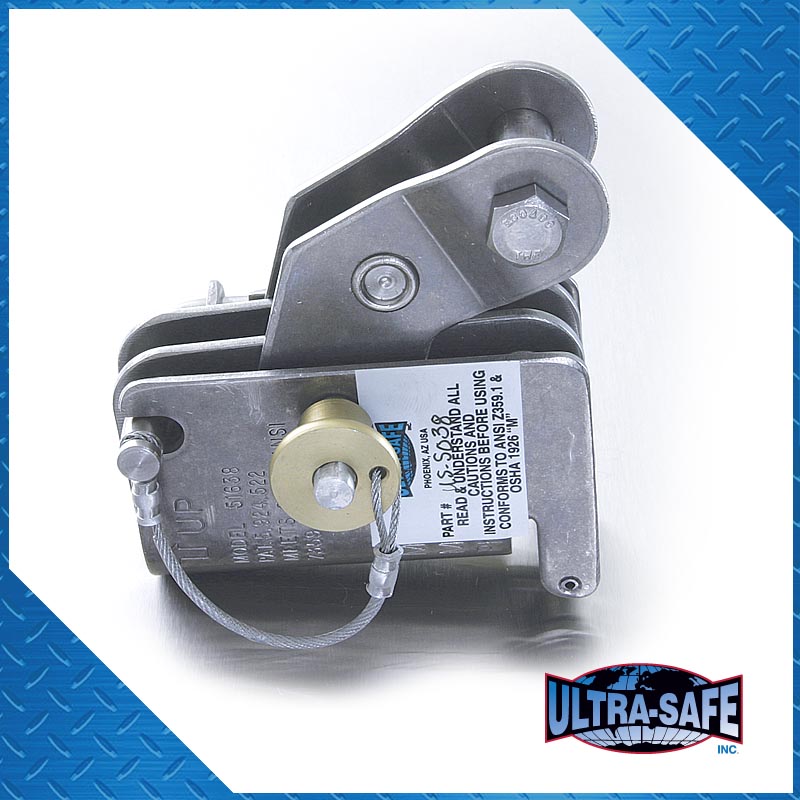

Rope grab, for 5/16″ and 3/8″ galvanized or stainless steel wire rope
ITEM:Rope grab, for 5/16″ and 3/8″ galvanized or stainless steel wire rope
WT: 1.44 lbs
WARNING! US-5038 must always be used with a shock absorber. You must read and fully understand all instructions, or have all instructions explained to you before attempting to use this device. Equipment must not be installed, operated or inspected by anyone who does not understand this Owner’s Manual. Failure to observe these instructions could result in serious injury or death. Training and instruction review should be repeated at regular intervals.
DESCRIPTIONThe Model # US-5038 is a small wire grabbing device that follow a worker’s movement up and down a vertical lifeline. If a fall occurs, the cable grab locks on the cable and reduces the possibility of serious injury. An energy absorbing lanyard is used for connection between the cable grab and worker’s harness to reduce the forces generated during a fall and to insure compliance with OSHA’s maximum force requirements.
Inspect the rope grab for any damage, dirt, oil, grit, paint, etc. Refer to the “Cleaning” section on the page.
Make sure the lifeline is the proper type and size. (3/8″ diameter Stainless steel or galvanized 7×19 aircraft cable (non-lubed) with a minimum tensile strength of 8,000 Ibs.)
Tie off the bottom end of the lifeline vertically below the anchorage point to eliminate excess slack.
